Kii Three

Each Kii THREE contains six channels of DSP, D/A conversion and power amplification. Few companies could pull off such a densely packed design with truly world class performance electronics. But then again, few active speakers are designed by people who have previously turned high end power amplification and digital conversion around.

Enquire about this product

Enquire

Description

Kii Technology

Each Kii THREE contains six channels of DSP, D/A conversion and power amplification. Few companies could pull off such a densely packed design with truly world class performance electronics. But then again, few active speakers are designed by people who have previously turned high end power amplification and digital conversion around.

Each Kii THREE holds 6x250W power amplifier boards, designed by Bruno Putzeys using the latest iteration of the Ncore class D technology which he invented for Hypex. Unique to the implementation used in the Kii THREE is a combined voltage/current control loop that goes beyond merely a better amp – it actively improves the distortion performance of the drive units which contributes significantly to the extreme resolution of the speaker.

Naturally, this means that the performance of the AD/DA conversion has to match that of the amps. This task fell to Bart van der Laan who has a long track record designing DSP and converter boards for high-end professional audio equipment. Kii Audio’s implementation is a runaway success: a complete pass through the AD/DA circuitry of the THREE’s signal processing board is entirely inaudible, a feat not duplicated by the most expensive audiophile standalone units.

Alongside the Active Wave Focusing filters the DSP is responsible for keeping the drive units within their safe operating range by gently adapting the filters instead of brutally limiting the signal, allowing the THREE to play significantly louder and cleaner than much bigger traditional designs.

On the input side there is a choice of analogue, digital inputs. All digital inputs are up-sampled and reclocked using Kii’s own jitter rejection algorithm that guarantees actual “bits is bits” audio performance for any digital source.

The electronics package alone sets a milestone. What it does in concert with the unique acoustic design defies imagination. You have to hear it to realise the magnitude of the revolution the Kii THREE represents.

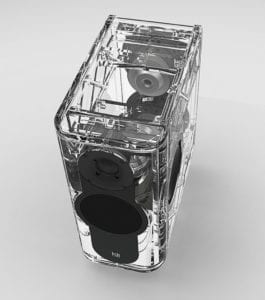

inside Kii Three
inside Kii Three

Kii THREE

Technical Specification

Compact DSP controlled monitor speaker4x 6.5″ woofer, 1×5″ midrange, 1″ waveguided tweeter, all individually drivenAmplification: 6 x 250W full-custom NcoreActive Wave Focusing crossover filterFrequency response:  – 25 kHzBass extension -3dB@30Hz, -6dB@20Hz. Response flatness +/- 0.5dB (1/12th octave)Phase response: minimum (best possible time coherence).Long term SPL(*): 105dBShort term SPL(*): 110dBPeak SPL: 115dBControlled Directivity: 4.8dB (80Hz – 1kHz, slowly rising thereafter)Size: 20x40x40cm, 8″x16″x16″ (WxHxD)Weight: 19 KGInputs: Analogue, AES/EBUSPDIF, TOSLink, USB on Kii Control.Selectable correction for free-standing, near wall or in corner(*)IEC60268-5 Paragraph 20.6″Specifications are subject to change without notice”

Register your product and extend your warranty to 5 years for free!(This extension is strictly limited to the original owner and not transferable)

Connector panel from left to right:

XLR Input – this can provide either analog or digital Input depending how the select switch is set

Select switch (3 positions) – chooses between AES left channel / Analog / AES right channel Input

KiiLink Digital Input on CAT5 – used to connect the two speakers & future Kii products

KiiLink Digital Thru on CAT5 – used to connect the two speakers when using a single AES Input

Boundary switch – ca be set to 16 positions between free / wall / corner to optimize setup

Contour switch – provides flat setting + 14 different preset EQ curves to match the listeners taste

Mains Power Connector – plug in your power cable and go, the Kii Three has no power switch

DOWNLOAD USER MANUAL

HiFi News Aug 2018 Kii Audio Three Reprint

HIFI+ KII Three Review



Prices per speaker inc VAT:

Standard (lacquered grey or white) £5890

Customer colour Matt, High gloss or Metallic £6390



Dedicated stands (with cable management) in black powder coat £995 / pair
