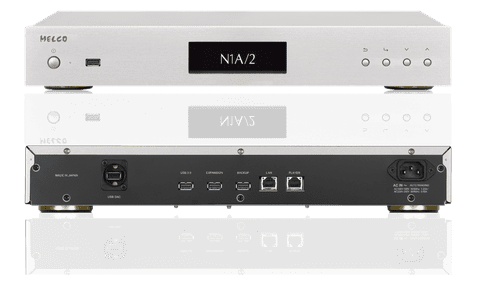

Melco N1 A-2 EX Music server


Th snappily titled N1A-2 is a development of the N1A.

SKU: N/A Category:


Th snappily titled N1A-2 is a development of the N1A.

To further improve sound quality especially for USB-DAC users. A dedicated Neutrik USB 2.0 port connects to the DAC for optimum sound quality. Internally there are many detailed improvements to further reduce internal noise including a new capacitor bank to isolate the medical grade power supply, a new higher current 3 pole IEC connector with true ground and a built in power supply noise filter. Newly selected HDDs with vibration isolating cradles ensure a new low level of vibration combined with capacity increase (2 x 3TB). A front panel USB 3.0 port makes importing from USB stick or USB drive very convenient and is in addition to the 3 rear USB 3.0 ports for Easy Backup, Easy Expansion, Easy Play and Easy import.


Aluminium Fascia and Metal Wrap

– Single press power button – same as Hi-Fi components and unlike any IT device

– Comfortable front panel buttons with positive click for easy operation

– Front USB 3.0 port

– OLED display to reduce internal noise

– Rear USB3.0 ports – BACKUP, EXPANSION USB-DAC or Easy Import from Flash drive, CD drive or HDD

– 3 pole IEC mains inlet with true electrical ground to define source component as ground point, and internal power-line noise filter


MELCO Direct Streaming Music + MELCO Ethernet Purifier  –

– Dual Ethernet ports – dedicated PLAYER port and LAN port

– Direct Mode requires no LAN connection and the N1 manages the Ethernet Player and gives IP address without router

– RJ-45 with low noise light pipe LED indicators

– Micro miniature high performance network pulse transformers

– Audio grade ultra-low jitter internal data clock

– High data integrity and precision low jitter clock buffer

– FPGA voltage control system


MELCO Clear and Dynamic Power Supply

– 60W PSU for LAN and SSD & USB related device

– Multiple low noise voltage regulators

– 3 wire IEC with ground


Internal Disk Drive

– Large capacity HDD (2 × 3TB)

– Selected low vibration 3.5ich HDD

– Floating HDD mount with Silicon Rubber dampers






Model HA-N1AH60/2-EU (Silver)HA-N1AH60/2BK-EU (Black)
Support file (Server) DSF, DFF, FLAC, WAV, ALAC, AIFF, AAC, MP3, WMA, OGG, LPCM
Support file (Player) DSF, DFF, FLAC, WAV, ALAC, AIFF, AAC
Sampling rate (Server) 44.1K, 48K, 88.2K, 96K, 176K, 192K, 384K, 2.8M, 5.6M, 11.3M
Sampling rate (Player) 44.1K, 48K, 88.2K, 96K, 176K, 192K, 384K, 2.8M, 5.6M, 11.3M
Bit rate 16-32bit (PCM), 1bit (DSD)
Media Server Twonky Media Server
Terminals LAN (1000BASE-T)Player (1000BASE-T)Backup (USB 3.0, rear panel)Expansion (USB 3.0, rear panel)USB 3.0 (rear panel)USB 3.0 (front panel)USB-DAC (USB 2.0, rear panel)Ground connectable bolt
Power supply unit 60 W x1 with capacitor bank
Drives Selected 3.5inchEU: HDD 3TB x 2US: HDD 2TB x 2
Case  Aluminum front panel & Metal chassis
Size 436 x 62 x 352 mm  (17.2 x 2.4 x 13.9 inches)
Weight 6.9kg (15.2 pounds)

Additional information



Black, Silver
