Ferrum Hypsos – hybrid power supply
Here’s our ex-demo unit, in excellent condition, boxed with all original accessories.
12 month warranty and free UK mainland shipping.
Our initial interest in the Ferrum Hypsos was due to a tip-off from customer who had run into it elsewhere.
Why the Hypsos?
Ferrum Hypsos uses a hybrid power system, a combination of linear and switching designs, to get the advantages from each technique, which is low-ripple and low-noise as well as a fast transient response and high efficiency. It offers a selection of unique features and even accounts for future software improvements.
Simple and Stylish

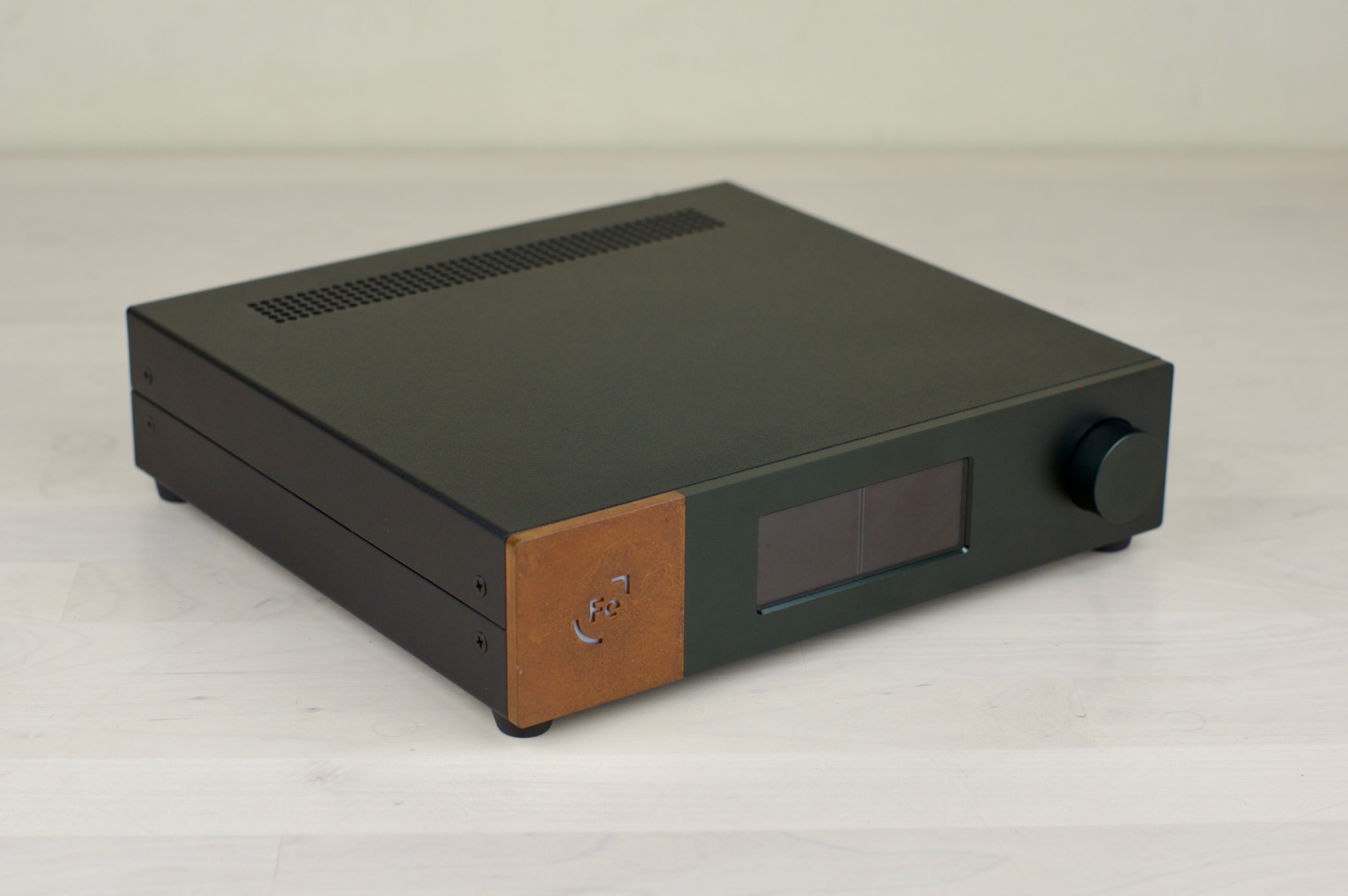

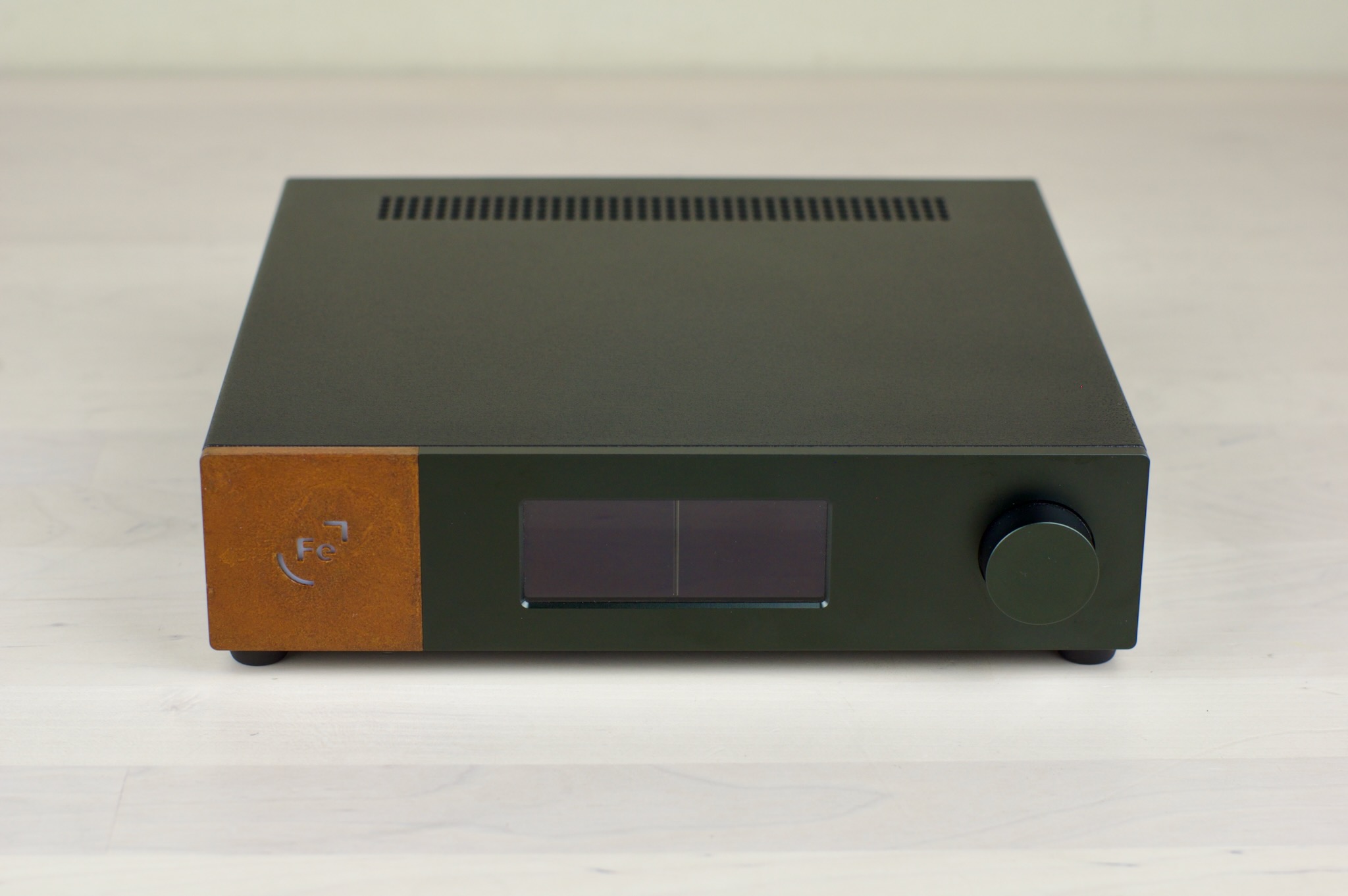

Housed in a minimalistic sleek black unit with hardly any hardware user controls, only a display screen and one knob; the device is mainly software controlled and is as impressive in its design as in its performance.
Compatibility
The Hypsos is compatible with a vast array of equipment By using pre-configured settings from the list of supported devices or setting parameters manually you can get your system up and running in no time. The HYPSOS is as universal a device as it gets. View Ferrum’s list of compatible models
Customisable sound
The Hypsos allows for full customisation of your sound. SST (Sweet Spot Tuning) allows you to fine-tune the output voltage for the best sound; it can even be adjusted on the fly to provide comparison testing. It also has a settings lock to prevent accidental change of the parameters.
Hypsos Cables
Ferrum Audio Hypsos has a cable design called 4T Sensing Design (4TSD), which comprises of two wires delivering the power and two wires providing feedback to ensure a flat voltage at every moment. This technique eliminates the harmful effects of the cable’s resistance, effectively improving transient response. The current delivery speed at the powered device’s input is significantly improved.
Configuration Options
The Hypsos comes with two DC power cables, a 5.5 x 2.5mm and a 5.5 x 2.1mm DC cord, which connects to most commonly used DC inlets.
The Hypsos really did it. More dynamics, better bass performance… – Morten Mohr & Marius Smolinski, Germany

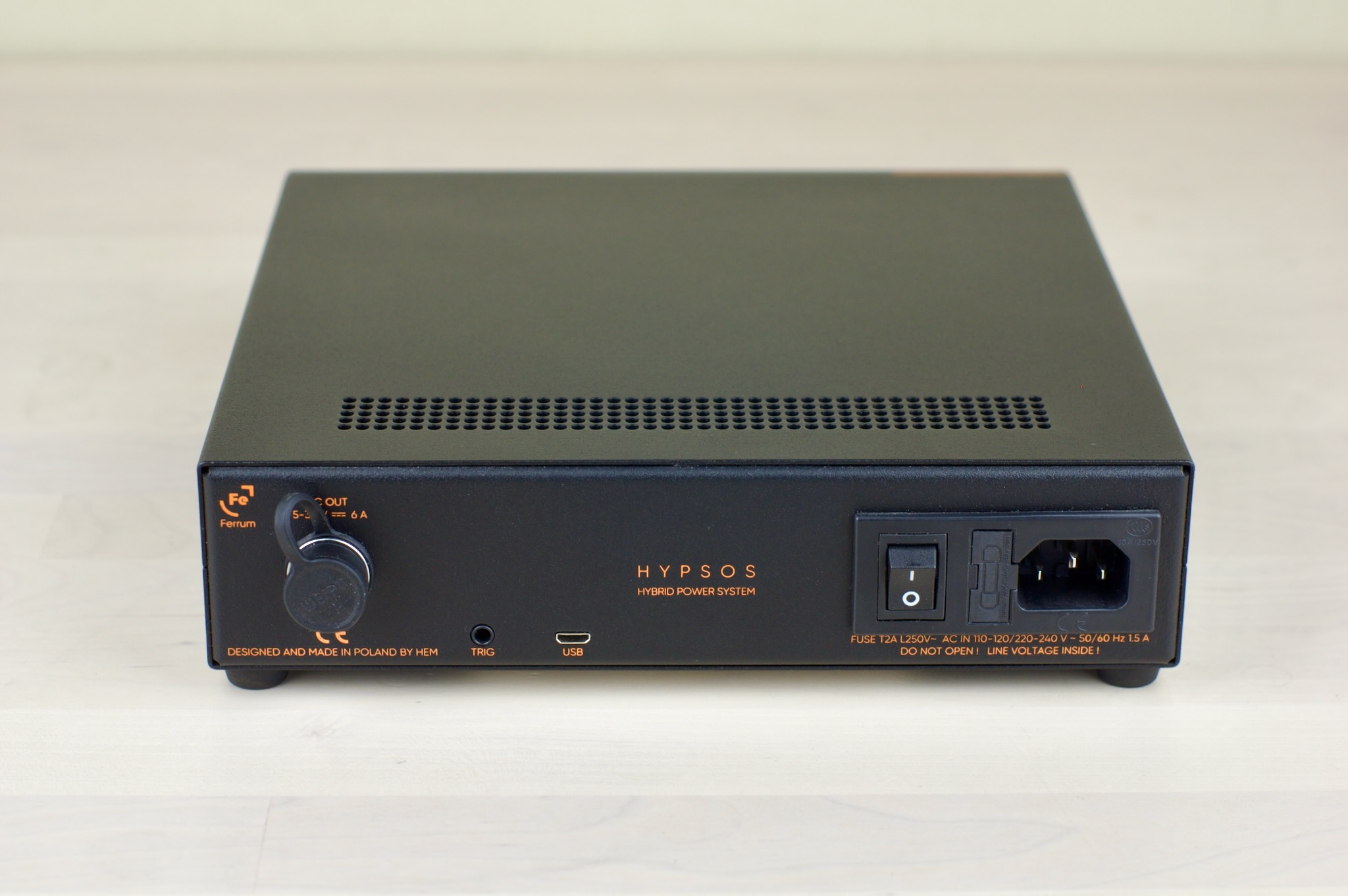

- Power input: 110-120 & 220-240V AC/50-60Hz (EU/US Version)90 – 110Vac/50-60Hz (JP Version)IEC C14 power inlet, a fuse holder with power on/off switch plus two-stage EMI filter for low impedance load with better noise attenuation in low frequency applications
- Mains cable: US/EU/UK
- DC OUT cable: 5×2.5mm DC plug / 5×2.1mm DC plug Custom cables made to order at additional cost
- Output Voltage Range: 5-30 [V]
- Max Continuous Output Current (for V_out below 13,3V): 6 [A]
- Max Continuous Output Current (for V_out higher than 13,3V): l_out= 80[W] / DCout[V]
- Maximum Impulse Current: 9A
- Maximum Impulse Power: DC V_out*9A (270W for 30V)
- Max Continuous Output Power (for V_out below 13,3V): P_out = V_out[V] * 6[A]
- Max Continuous Output Power (for V_out higher than 13,3V): 80W
- Dimensions (without knob, feet and connectors) (W x D x H , mm / inches): 217.5 x 206.5 x 50.0 / 8.6 x 8.1 x 2.0
- Net weight (kg / lb): ~ 2,89 / ~ 6.2
- Primary winding fuse: IEC 5x20mm, 250V 3.15A,slown-blown for Japan version / 250V 2A, slown-blown for Europe,US version
- Secondary winding fuse: Littefuse 154004T, 4A
- Power consumption: 230VAC, 50Hz @ 12VDC out/: Idle – 6VA @ 15W load – 30,7VA @ 60W load – 98VA @ 80W load – 133,9VA
- Read the HYPSOS white paper for a total product design overview
