Description
Melco N100 EX
The award-winning N100 is the starting point to Melco ownership. The half-width design is easy to place anywhere in the home, and despite its compact dimensions, there’s a choice of 2 TB or 5 TB storage capacities, enough for even the most avid music collector.

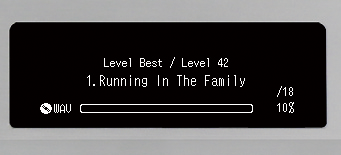

- Crystal-clear easy-read OLED display
- Half-width design is easy to locate anywhere in the home
- Available in 2 or 5 TB storage capacities
- Aluminium front and top panel with brushed finish
- Easy operation from the front panel buttons (+ app control)
- 2 mm-thick steel sheet chassis to minimise vibration

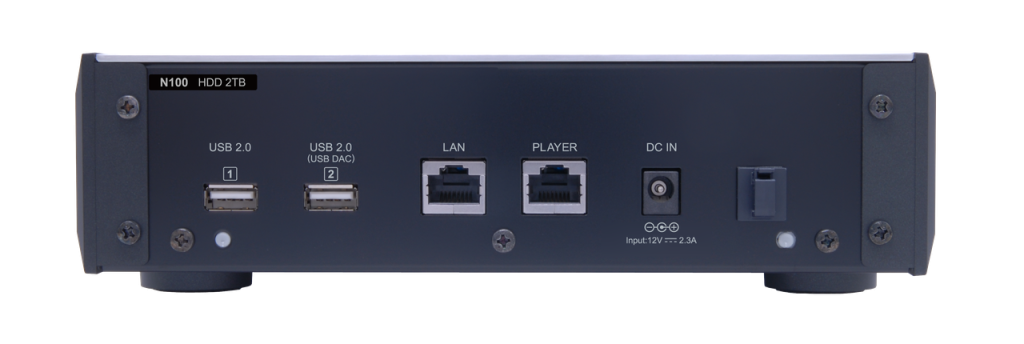

- Dedicated ‘PLAYER’ and ‘LAN’ ports for better sound quality
- 3x USB 2.0 compatible with USB DACs, USB CD drives and USB storage (HDD or Flash memory).
- Fan-less design
- Music storage 1 x 2.5-inch specially selected HDD 2TB/5TB on Melco’s HS-S2 isolation platformNetwork connectivity LAN Port-Gigabit Ethernet (1000Base-T),PLAYER port,Gigabit Ethernet (1000Base-T),DHCP server in isolated modeUSB connectivity USB 2.0 Front panel x 1USB 2.0 Rear panel x 2Assignable as DAC, backup, import, expansion
USB player sample rate support16-32 bit (PCM) to 384 kHz: auto downsample to suit connected DACsGapless PCM support1 bit (DSD) to 11.3 MHz Quad DSD.Markerless DSD supportDSD to 32-bit PCM conversion selectableGapless DSD supportOLED displays player sample rate
Power supply Universal power adapter 100-240 V AC 48 W
Size 215 x 61 x 269mm (W H L)Weight 3 kg
Small and Smart
N100 creates a convenient and compact Hi-Fi system when used with a USB-DAC Headphone amplifier or USB connected Active Loudspeakers.
Sound Quality of N100 is true to the Melco tradition and will not be outclassed in a high-end system.
Store and Management
The music files once saved to N100 can be played through LAN and USB.
CD import using any USB connected optical disc drive with metadata and album art added from Gracenote database. Compatible with MELCO D100 high performance CD loader.
CD can be played directly without importing into connected USB-DAC in the manner of a high-end CD player.
Convenient downloading of Hires music directly into Melco N100 without need for a network computer from HiResAudio.com and other vendors.
*Some parts of the HDD is used for system running, so not all capacity is used for music files.
Showing process of CD import
Playing music files
N100 will collate and arrange the complete music library and offers browse by Album, Artist, Data format, Date of recording, Composer etc.
Browse and play is possible from the N100 front panel or App on smartphone or tablet.
N100 supports all high res music formats up to 32bit 384kHz and Octo DSD.
Simple Operation
N100 is ready to use once language and time zone has been selected.
Additional advanced features, all accessible from the simple front panel interface, allow for customization.
Available in black or silver
