Description

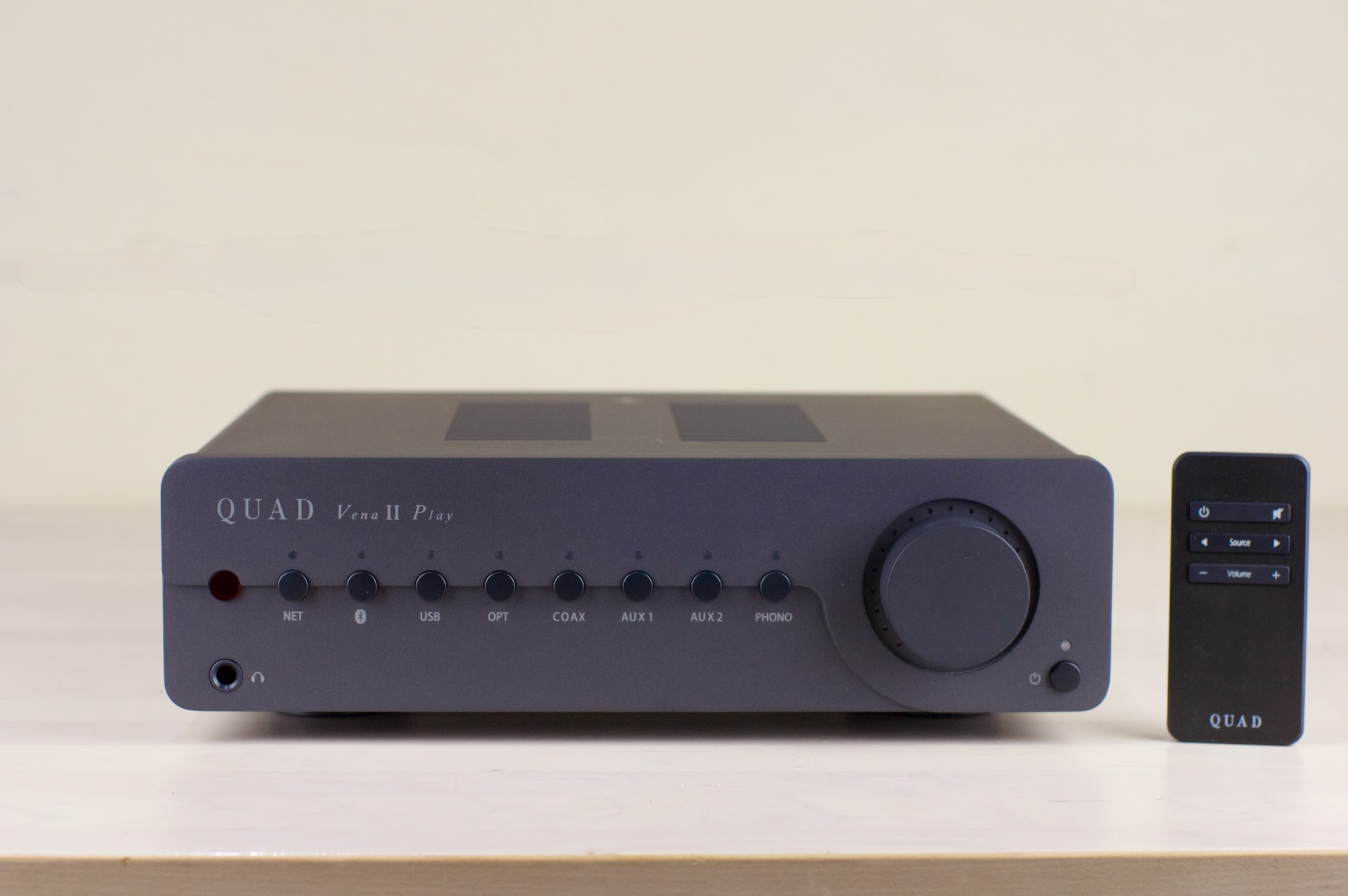

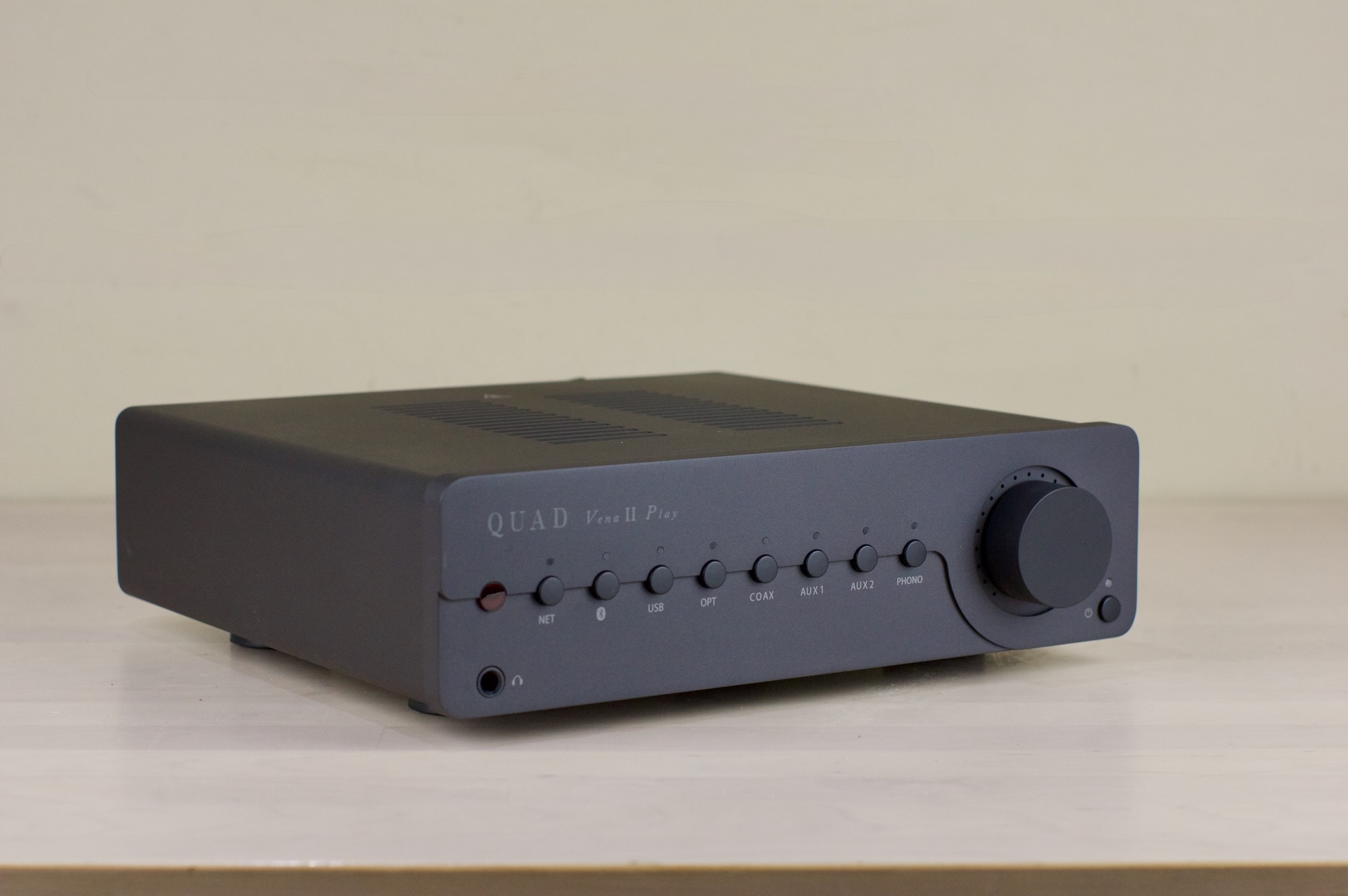

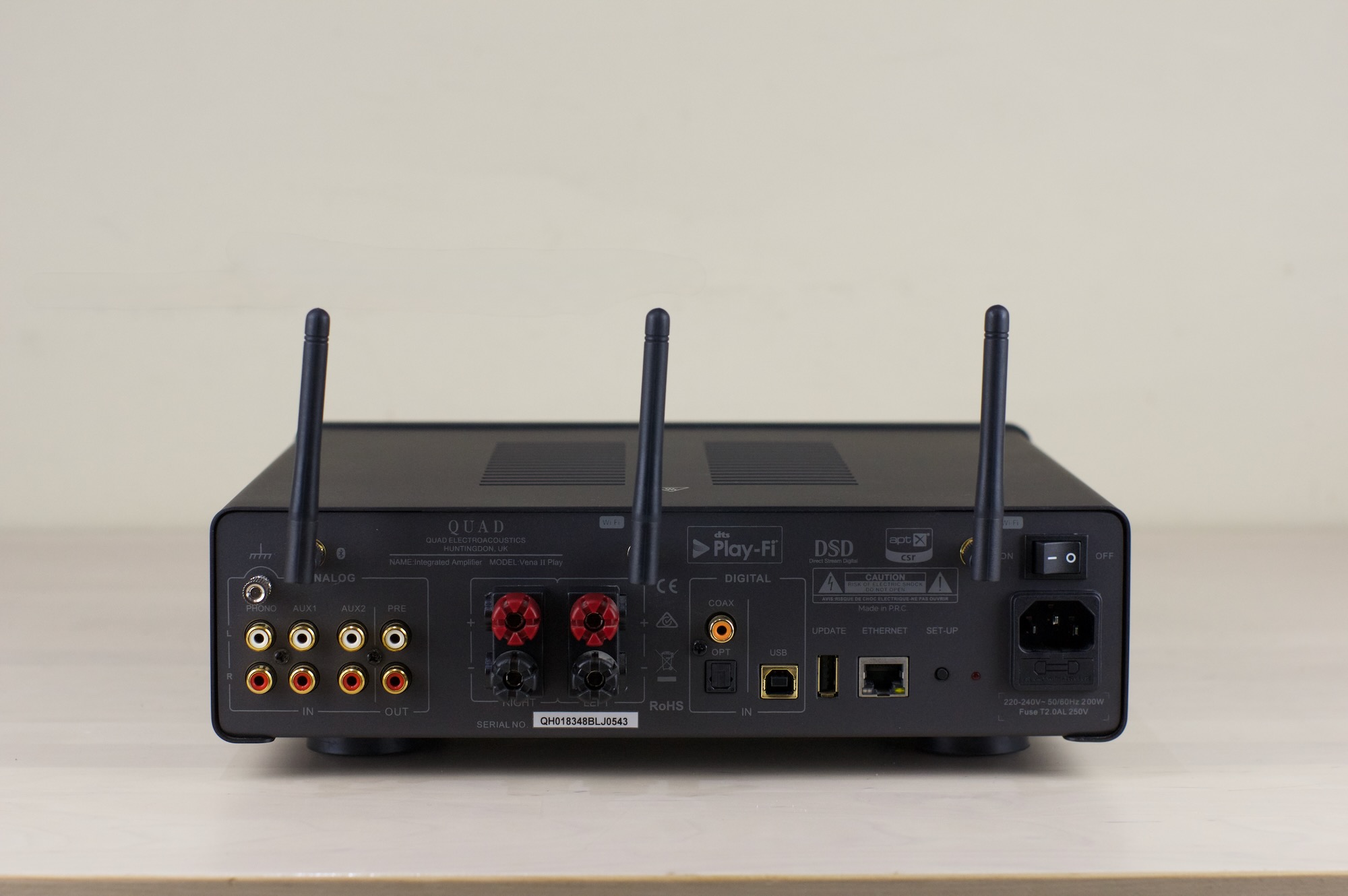

QUAD Vena II Play
Wireless Streaming Integrated Amplifier
The QUAD Vena II Play was the final addition to the best-selling QUAD Vena series of integrated amplifiers. It also heralded the arrival of wireless audio streaming and multi-room technology to the QUAD product portfolio. Based on the richly specified Vena II, the QUAD Vena II Play incorporates the acclaimed DTS Play-Fi® platform.
With DTS Play-Fi® Technology, music can be streamed over your wireless network in high-resolution format and can be easily expanded to an ultimate multi-room system if required. You can stream from any source on your wireless network, including smart-phones, tablets or PCs as well as a NAS Drive.
This example in Lancaster grey was supplied by us and has had one owner from new. Condition is very good with only the odd minor mark betraying that it’s not brand spanking new.
A larger clue is that the original box had been binned and this now comes in the packaging for the QUAD 3 that replaced it!
Offered with free UK Mainland shipping and a 3 month warranty.
Specifications
| Model | VENA II Play |
| DTS Play-Fi Technology | Dual – band 802.11a/b/g/n |
| Support global, popular streaming content（Amazon Music, Spotify, TIDAL, | |
| Juke, BBC, ESPN, KKBox, SiriusXM, Napster, Internet Radio, Deezer, | |
| iHeartRadio, PANDORA, SOUNDMACHINE, tunein, Qobuz, Qmusic） | |
| Support Speakers Group | |
| Support android/iOS/Kindle Fire/Windows PC | |
| Analogue Pre-Amplifier Section: | |
| Input Sensitivity (AUX) | 525mV |
| Input Sensitivity (Phono, MM) | 2.5mV |
| Input Impedance | 10Kohm (AUX) , 47Kohm // 100pF (Phono) |
| Inputs | 2 x AUX , 1x Phono (MM) |
| Output | 1 x Pre-Out (RCA) |
| Frequency Response | 20Hz-20KHz (+/- 0.5dB) |
| Total Harmonic Distortion (THD) | < 0.002% |
| Signal To Noise | > 110dB (A-Weighted) |
| Power Amplifier Section | |
| Rated Power | 2 x 45W (8ohm) / 2 x 65W (4ohm) |
| Frequency Response | 20Hz-20KHz (+/- 0.5dB) |
| Total Harmonic Distortion (THD) | < 0.005% (30W, 8ohm) |
| Signal To Noise | > 108dB (A-Weighted) |
| Digital Section | |
| DAC | ESS Sabre32 ES9018K2M chip |
| Sampling Frequency | Optical, coaxial: 44.1kHz —192kHz ; |
| USB:44.1kHz—384kHz(PCM)/DSD64, DSD128, DSD256 | |
| Ethernet, Wi-Fi: 44.1kHz —192kHz | |
| Digital Input | 1 x Coaxial, 1 x Toslink Optical |
| 1 x USB for PC USB | |
| Bluetooth(aptX, aptX LL) | |
| Mechanical Section | |
| Size (W X H X D) | 301 x 95 x 313 mm |
| Net Weight | 6.1kg |
