Description

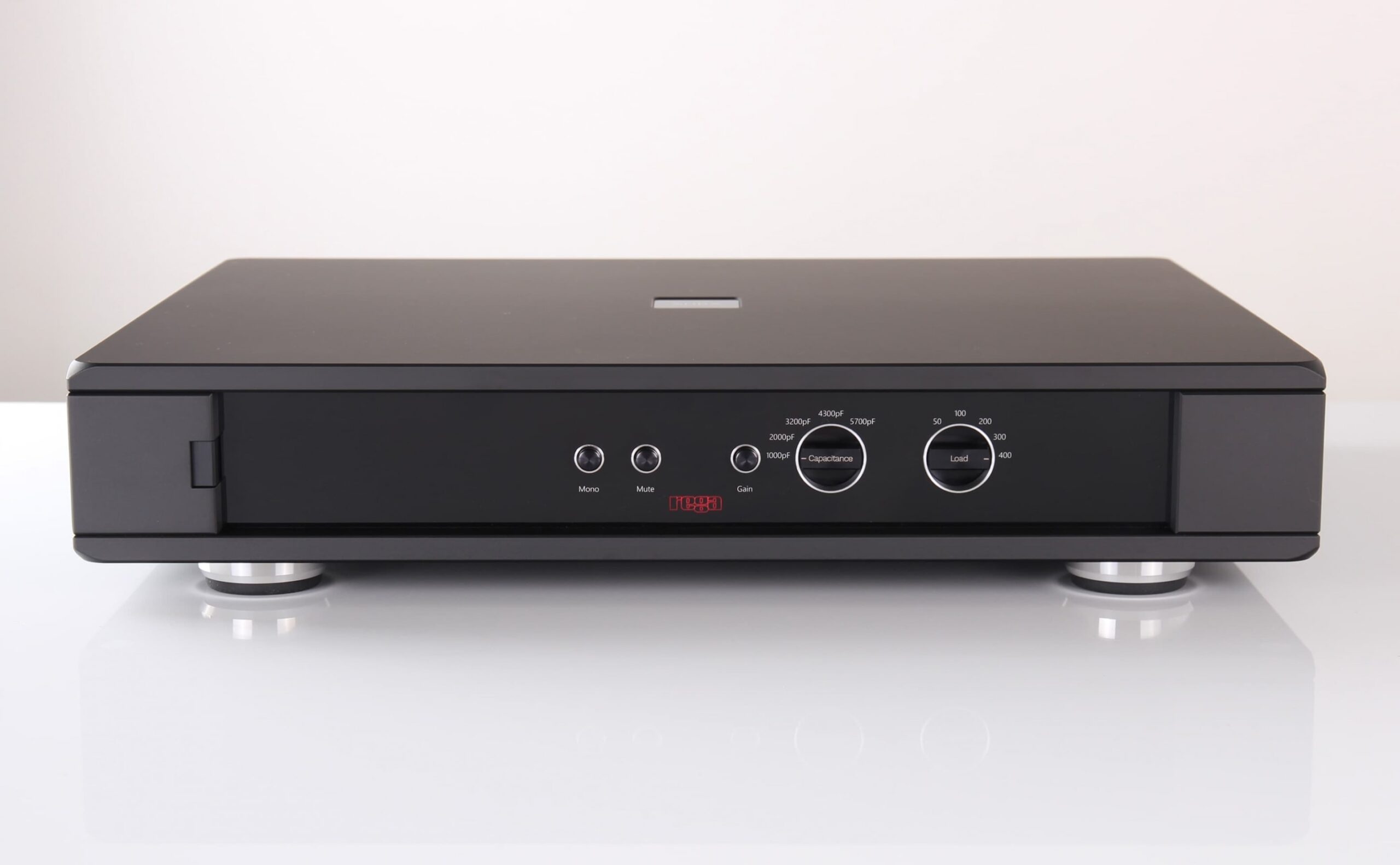

AURA MC Reference
The reference Aura MC stage is the culmination of decades of electronic design development. We have created the ultimate, fully adjustable, three-stage, all symmetrical pre-amplifier designed purely to extract the very best performance from your moving coil cartridge and vinyl playback system.
Design Innovation
Built into a completely re-designed custom case, the Aura is dedicated to moving coil cartridges and stays clear of any compromises. We have avoided including any superfluous functions as they obstruct the signal path and degrade the sound quality. The Aura phono pre-amp incorporates remarkable and innovative design ideas. If you are a vinyl connoisseur, then the Aura MC is an absolute must for demonstration.
UK DEALERS GLOBAL DISTRIBUTORS
KEY FEATURES
- Three stage, all symmetrical pre-amplifier
- Compatible with all typical low output moving coil cartridges
- Fully adjustable
- Lifetime warranty against manufacture defects
PRODUCT DETAILS
- FIRST STAGE
- SECOND STAGE
- THIRD STAGE
TECHNICAL SPECIFICATIONS
Input Load
50, 100, 150, 300 & 400 Ω
Capacitive Load
1000, 2000, 3200, 4300, 5700 pF
RIAA Accuracy
0.2 dB 100 Hz to 50 kHz
Frequency Response
13.5 Hz (-3 dB) to 100 kHz (-0.2 dB)
THD
0.03%
Input Sensitivity
69.5 dB (Gain Setting I), 63.5 dB (Gain Setting II)
Dimensions (W x H x D)
350 x 435 x 88 mm
Weight
13 kg
For full technical specifications, download Aura – User Manual Multilingual – Ver 3 below.
